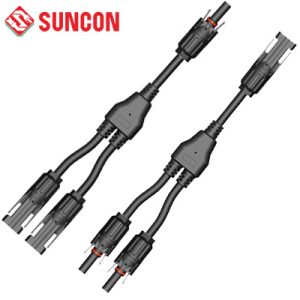

Suncon napelemes elágazó kábelköteg-Y2

Product No.

Y2

Rated voltage

TUV 1000V DC / UL 600V DC

Rated current

30A

Suitable cable cross sections

2.5mm2 ～ 6.0mm2 / 14AWG ～ 10AWG

Terminal size

Φ4.0mm

Test voltage

DC 8KV 1min

Pollution degree

2

Protection class

Class Ⅱ

Terminal Material

铜镀锡

Contact resistance

≤ 5mΩ

Insulation Materials

PPO

IP rating

IP67(IEC 60529)

Pull-out force

≥ 50N

Insertion Force

≤ 50N

Test temperature

－40℃～ +85℃

Flame Class

UL94V - 0
